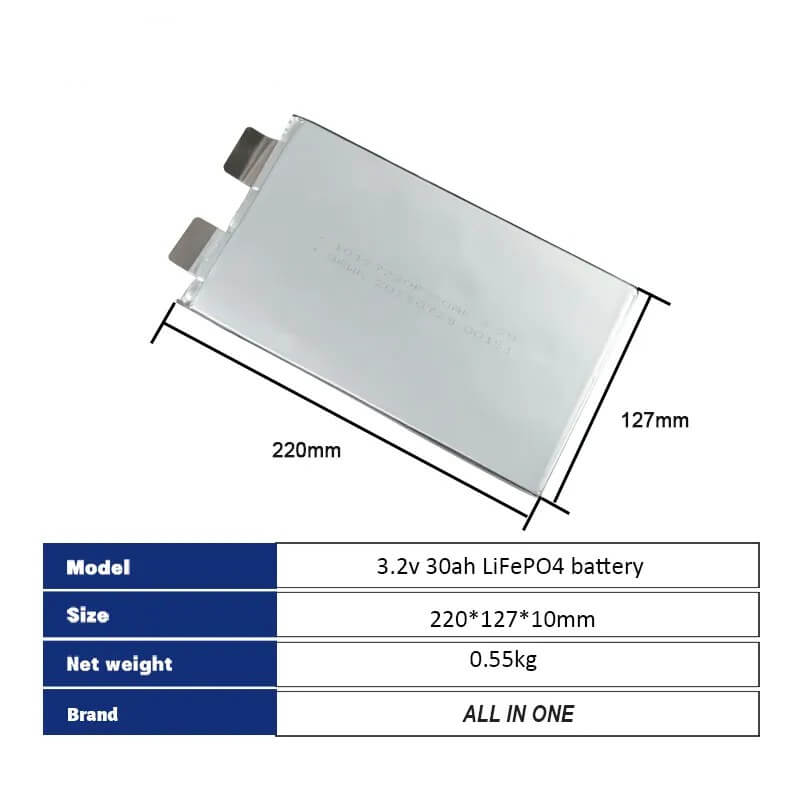

A Grade LiPO Battery Cells 3.2V 30Ah

2025-02-21 03:22

පිරිවිතර

මාදිලි අංකය	3.2v 30ah
බැටරි වර්ගය	Lithium ion polymer/lipo battery
ධාරිතාව	30Ah/customize
වෝල්ටියතාවය	3.2 වී
With PCBA/Connector	පවතින
වගකීම්	මාස 12 යි
OEM service	පවතින
පැකේජය	Industrial bulk tray package
Charging Working Temperature	0℃～60℃
Discharging Working Temperature	-30℃～60℃

විශේෂාංග
1.High energy density.
2. Long lifespan.
3. Low internal resistance.
4. Excellent performance in high and low temperature.
5.Good discharge and Charge Performance.

LiFePO4 and NMC(Li(NiCoMn)O2) are the major material. We have more 30 types of cells, and could make OEM battery pack from 12V-1000V, 10-1000ah, which can be used in electric vehicle, E-bike, UPS, energy storage system, telecommunication base station,
E-scooter, E-tools, unmanned airplane, golf cart, fork lift, cleaning car, electric wheelchair, etc

අයදුම්පත

ALL IN ONE Lifepo4 Battery Cell Catalog
බැටරි වර්ගය	ධාරිතාව	ප්‍රමාණය (මි.මී.)	බර (උ)	Charge/Discharge rate
ලයිෆ්පෝ 4 pouch battery	10AH	9.5*90*150	239	2C/5C
	10AH	8.0*68*270	266	4C/6C
	20 ඒ.එච්	Hot sale 8.3*142*240	485	1C/1C
	20 ඒ.එච්	6.5*160*227	465g	2C/3C
	20 ඒ.එච්	9.2*126*236	492	1C/3C
	20 ඒ.එච්	8.3*150*170	490	1C/3C
	25AH	8.5*137*232	560	2C/3C
	25AH	9.0*133*200	580g	1C/3C
	30AH	9.0*160*222	665	1C/3C
	30AH	9.2*170*240	690	1C/3C
	38AH	10*160*222	770	2C/3C
	40 ඒ.එච්	8.5*188*236	1kg	1C/1C
	50AH	32*203*173	1.65kg	1C/1C
	50AH	32*173*128	1.35kg	1C/1C
	60AH	60*150*165	1.8kg	1C/1C
	80 ඒ.එච්	60*150*200	2.7kg	1C/1C
	100AH	60*150*215	3.1kg	1C/1C

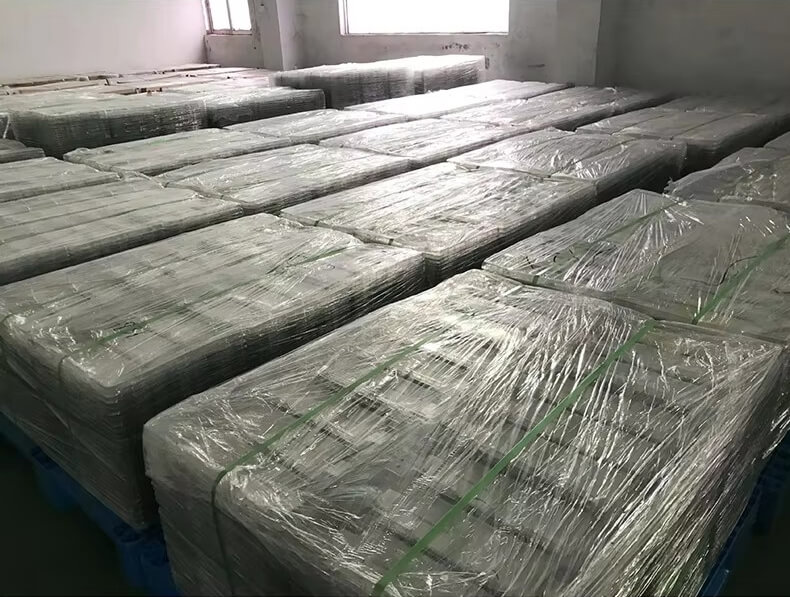

අපේ කර්මාන්ත ශාලාව

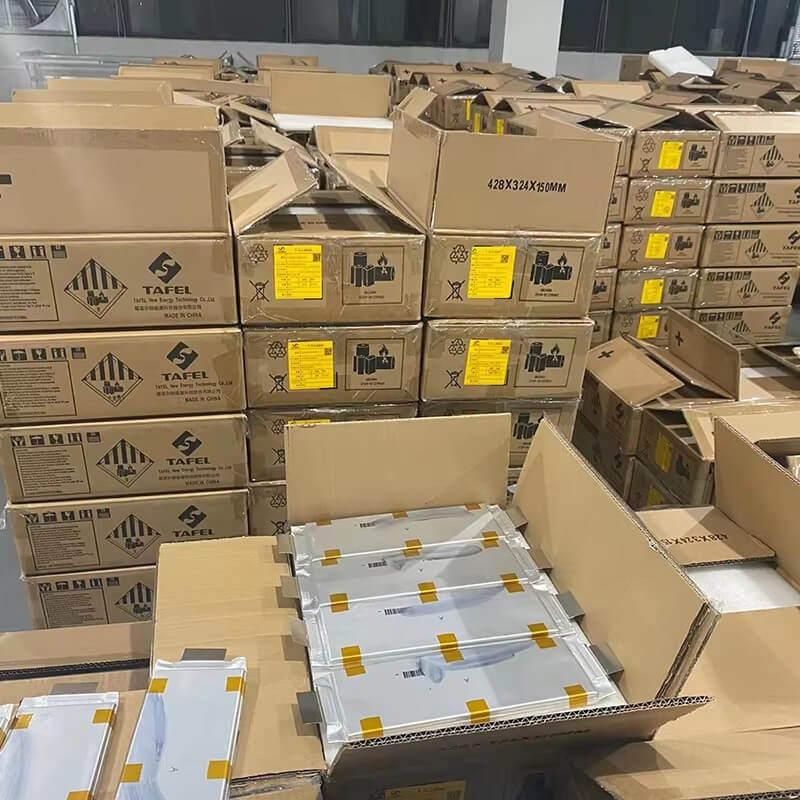

ඇසුරුම් සහ නැව්ගත කිරීම
