පිරිවිතර
විදුලි | නාමික වෝල්ටීයතාවය | 12.8 වී |
නාමික ධාරිතාව | [email protected] | |
බලශක්ති | 3840Wh | |
අභ්යන්තර ප්රතිරෝධය | ≤35mΩ | |
චක්රීය ජීවිතය | 2000-6000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity | |
ස්වයං විසර්ජනය | මසකට ≤3.5% 25 at | |
සම්මත අයකිරීම | උපරිම චාජ් වෝල්ටීයතාවය | 14.0 ~ 14.6 වී |
ආරෝපණ ප්රකාරය | 0 ℃ ~ 45 ℃ උෂ්ණත්වයේ දී, 0.2C නියත ධාරාවකින් 14.6V ට ආරෝපණය කර, පසුව ධාරාව 0.02C ට වඩා වැඩි නොවන තෙක් 14.6V නියත වෝල්ටීයතාවයකින් අඛණ්ඩව වෙනස් විය. | |
ආරෝපණ ධාරාව | 100 ඒ | |
උපරිම ආරෝපණ ධාරාව | 100 ඒ | |
සම්මත විසර්ජනය | ධාරාව විසර්ජනය කිරීම | 100 ඒ |
උපරිම. අඛණ්ඩ ධාරාව | 100 ඒ | |
උපරිම ස්පන්දන ධාරාව | 200A (<3S | |
කපා හැරීමේ වෝල්ටීයතාවය විසර්ජනය කිරීම | 10.0 | |
මෙහෙයුම් තත්වය | උෂ්ණත්වය ආරෝපණය කරන්න | 0 ℃ සිට 45 ℃ (32 ℉ සිට 113 ℉) @ 60 ± 25% සාපේක්ෂ ආර්ද්රතාවය |
විසර්ජන උෂ්ණත්වය | -20 ℃ සිට 60 ℃ (-4 ℉ සිට 140) @ 60 ± 25% සාපේක්ෂ ආර්ද්රතාවය | |
ගබඩා උෂ්ණත්වය | 0 ℃ සිට 45 ℃ (32 ℉ සිට 113 ℉) @ 60 ± 25% සාපේක්ෂ ආර්ද්රතාවය | |
ජල දූවිලි ප්රතිරෝධය | IP55 | |
ව්යුහය | කොටුව සහ ආකෘතිය | 4S1P, prismatic |
ආවරණ | ප්ලාස්ටික් | |
මානය (L * W * H * TH) | 522*270*217*217mm | |
බර | Approx. 27.5Kg | |
පර්යන්තය | එම් 8 |
Can add LCD fuel gauge.
Can add Control switch.
Can add Coulomb lamp display.
Can add USB connector.
Conditions සාමාන්ය තත්වයන් යටතේ ලිතියම් යකඩ පොස්පේට් සෛල, සුපිරි ආරක්ෂාව, චක්ර දහස් ගණනක්, 100% DOD තාක්ෂණය භාවිතා කිරීම.
Over අධි ආරෝපණය, අධික විසර්ජනය, ධාරාව සහ අධික උෂ්ණත්වය සඳහා ස්වයංක්රීය ආරක්ෂාව.
. නඩත්තු කිරීමකින් තොරව.
Cell අභ්යන්තර සෛල තුලනය.
Weight සැහැල්ලු බර: සැසඳිය හැකි ඊයම් අම්ල බැටරියේ බරෙන් 40% ~ 50% පමණ.
Standard බොහෝ සම්මත ඊයම් අම්ල ආරෝපණ (කට්ටලය) භාවිතයෙන් අය කළ හැකිය.
Temperature පුළුල් උෂ්ණත්ව පරාසය: -20 ~ ~ 60.
◆ Series යෙදුම් ප්රසාරණය සඳහා සහය (51.2V දක්වා) සහ සමාන්තරව දෙකක්.
අපේ කර්මාන්ත ශාලාව

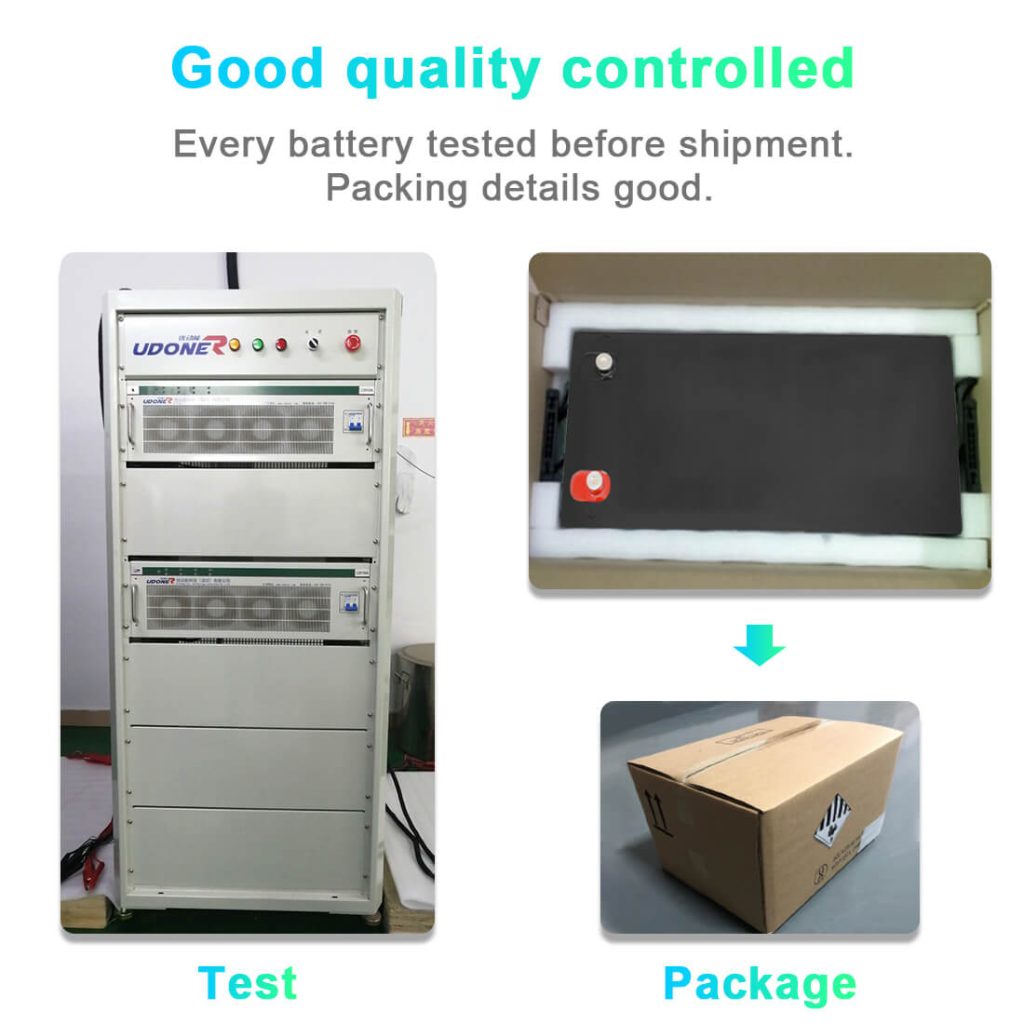

ඇසුරුම් සහ නැව්ගත කිරීම
නිති අසන පැණ
Q1. Is it OK to print my LOGO on the product?
පිළිතුර - ඔව්. කරුණාකර අපගේ නිෂ්පාදනයට පෙර විධිමත් ලෙස අපට දන්වා අපගේ නියැදිය මත පදනම්ව සැලසුම පළමුව තහවුරු කරන්න.
Our factory supports Customized: case, size, battery structure, logo, packaging etc.
Q2. Can I have a sample order?
A.Yes, we welcome sample order to test and check quality.
Low MOQ, 1pc for sample checking is available.
Q3:Which product is hot sale in your company?
A: LiFePO4 battery 24Ah,50Ah,100Ah,200Ah,280Ah,300Ah; 12V,24V, 48V LiFePO4 battery pack and so on.
Q4. What about the lead time?
A. Sample needs 3-7 days, mass production time needs 7-20 days, it depends on order quantity.
Q5. ඇණවුමක් සමඟ ඉදිරියට යන්නේ කෙසේද?
A. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our
suggestions.Thirdly customer confirms the samples and places a deposit for formal order. Fourthly We arrange the production.
Q6.Which certificates do you have?
පිළිතුර: අපට CE / FCC / ROHS / UN38.3 / MSDS ... යනාදිය ඇත.
Q7.How about warranty?
A:3-5 year warranty
Q8: Are these battery packs compatible with my inverter?
A: Yes, Sir. Our battery pack is compatible with most brands of inverters on the market.
Contact us and let me tell you more.
Q9. How do you ship the goods and how long does it take to arrive?
A.It usually takes 5-7 days to arrive. Train and Airline and Sea(DDP) shipping is also optional.
Q10: How do I know whether you've shipped my order or not?
A: Tracking No. will be offered as soon as your order be shipped out. Before that, our sales will be there to check the packing
status, photo you the done order and let you know the forwarder picked it up.
