පිරිවිතර
# | අයිතමය | පරාමිතිය | සටහන් කරන්න | ||
1 | නාමික ධාරිතාව | 90Ah | (25±2)°C, Standard Charge And Discharge | ||
2 | Typical Voltage | 3.2 වී | |||
3 | AC Impedance Resistance(1KHz) | ≤0.5mΩ | |||
4 | Standard Charge And Discharge | Charge/Discharge Current | 1C/1C | (25±2)°C | |
Cut Off Voltage Of Charge/Discharge | 3.65V/2.5V | ||||
5 | Maximum Charge/Discharge Current | Continuous Charge/Discharge | 1C/1C | According to continuous/ pulse charge and discharge ammeters | |
Pulse Charge/Discharge(30s) | 3C/3C | ||||
6 | Recommended Scope Of SOC | 10%~90% | N.A | ||
7 | උෂ්ණත්වය ආරෝපණය කිරීම | 0°C~55°C | According to continuous/ pulse charge and discharge ammeters | ||
8 | උෂ්ණත්වය බැහැර කිරීම | -20°C~55°C | |||
9 | ගබඩා උෂ්ණත්වය | Short Term ( Within 1 month) | -20 ° C ~ 45. C. |
N.A | |
Long Term ( Within 1 year) | 0 ° C ~ 35. C. | ||||
10 | Storage Humidity Range | <95% | |||
11 | Self-discharge rate per month | ≤3%/month | Temperature: (25±2)°C,Storage Scope Of SOC: 30%~50%SOC | ||
12 |
මානය | පළල | 130.3±0.5mm |
Refer to Appendix ǀ | |
13 | Thickness( 30% SOC) | 36.7 ± 0.5 මි.මී. | |||
14 | High( Total) | 200.5 ± 0.5 මි.මී. | |||
15 | High( Subject) | 195.5 ± 0.5 මි.මී. | |||
16 | Tabs Distance | 67.0 ± 1.0 මි.මී. | |||
17 | බැටරි බර | 1994±50g |
Attentions
- It is necessary to ensure that the voltage, current and temperature of the cell are monitored and protected when the cell is charged and discharged.
- Please keep the cell away from heat source, fire source , strong acid, strong alkali and other corrosive environment.
- Do not short connect or install the battery with incorrect polarity at any time.
- Do not mix up with cells from different models or manufacturers.
- Do not use external force to make the cell fall, impact, puncture, do not disassemble the cell or change the external structure.
- Please keep the cell’s charge under 30% ~ 50%SOC, and avoid direct sunlight or high temperature and humidity environment when the battery is not used for a long time,
- Please wear protective devices such as rubber gloves when operating the battery.
Please immediately stop using if there have leakage, smoking or damage with cell , and contact our company to deal with.
අයදුම්පත
අපේ කර්මාන්ත ශාලාව

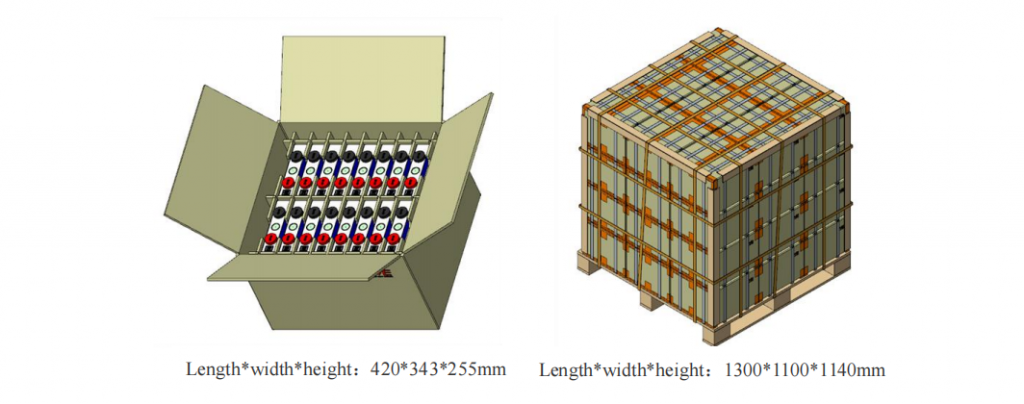

ඇසුරුම් සහ නැව්ගත කිරීම
The cells should be packed into boxes under the charge of 30% ~ 50%SOC. During the transportation, they should be protected from severe vibration, shock , extrusion, sun or rain.
ගබඞා
Cells should be stored (more than 1 month) indoor with a dry and clean environment at 0 ℃~35 ℃, and charged and discharged every 6 months. Keep the last charge under 30% ~ 50%SOC.
නිති අසන පැණ
Q1. මට නියැදි ඇණවුමක් ලබා ගත හැකිද?
පිළිතුර - ඔව්, ගුණාත්මකභාවය පරීක්ෂා කිරීම සහ පරීක්ෂා කිරීම සඳහා නියැදි ඇණවුම අපි සාදරයෙන් පිළිගනිමු.
Q2. ඊයම් කාලය ගැන කුමක් කිව හැකිද?
පිළිතුර - නියැදියට දින 3 ක් අවශ්යයි, මහා නිෂ්පාදන කාලය සති 5-7 ක් අවශ්යයි, එය ඇණවුම් ප්රමාණය මත රඳා පවතී.
Q3. ඔබට MOQ සීමාවක් තිබේද?
පිළිතුර - ඔව්, අපට මහා පරිමාණ නිෂ්පාදනය සඳහා MOQ ඇත, එය විවිධ කොටස් අංක මත රඳා පවතී. 1 ~ 10pcs නියැදි ඇණවුමක් ඇත. අඩු MOQ, නියැදි පරීක්ෂා කිරීම සඳහා 1pc ලබා ගත හැකිය.
Q4. ඔබ භාණ්ඩ නැව්ගත කරන්නේ කෙසේද සහ පැමිණීමට කොපමණ කාලයක් ගතවේද?
පිළිතුර - සාමාන්යයෙන් පැමිණීමට දින 5-7 ක් ගතවේ. ගුවන් හා මුහුදු නැව්ගත කිරීම ද විකල්පයකි.
Q5. ඇණවුමක් සමඟ ඉදිරියට යන්නේ කෙසේද?
පිළිතුර - පළමුව ඔබේ අවශ්යතා හෝ යෙදුම අපට දන්වන්න. දෙවනුව, අපි ඔබේ අවශ්යතා හෝ අපගේ යෝජනා අනුව උපුටා දක්වමු. තෙවනුව පාරිභෝගිකයා සාම්පල තහවුරු කර විධිමත් ඇණවුමක් සඳහා තැන්පතුවක් තබයි. හතරවනුව අපි නිෂ්පාදනය සංවිධානය කරමු.
Q6. නිෂ්පාදනයේ මගේ ලාංඡනය මුද්රණය කිරීම හරිද?
පිළිතුර - ඔව්. කරුණාකර අපගේ නිෂ්පාදනයට පෙර විධිමත් ලෙස අපට දන්වා අපගේ නියැදිය මත පදනම්ව සැලසුම පළමුව තහවුරු කරන්න.
Q7. ඔබ සතුව ඇති සහතික මොනවාද?
පිළිතුර: අපට CE / FCC / ROHS / UN38.3 / MSDS ... යනාදිය ඇත.
Q8. වගකීම් ගැන කෙසේද?
A: අවුරුදු 3 ක වගකීමක්
